WP100

Product1

WP100

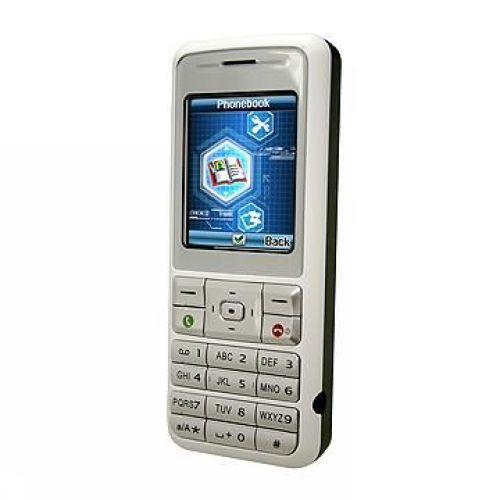

The Soundwin WP100 802.11b/g SIP WiFi Phone is a Voice over WiFi solution that provides a powerful intelligent voice solution for Enterprise environment. The WP100 allows you to chat and make free Internet calls or low cost regular calls.

The WP100 supports standard SIP (RFC3261), which is suitable for IP telephony service deployment to fulfill connection to emerging SIP-based networks. Based on the ITSP VoIP service, two/one SIP accounts can be configured.

Software Features

•IP Address: DHCP / Static IP / PPPoE

•Signaling: SIP (RFC-3261), RTP/RTCP (RFC-1889), TCP/UDP/IP

•Voice CODEC: G.711, G.729a

•Wireless Security: WEP 64/128 bit, WPA-PSK and WPA2-PSK

•DTMF Transmission: In-band/ Out-of-band, RFC-2833

•Call Functionality: Send/End, Hold/Resume, Call Transfer, Call Mute, Call Waiting, Call Forward, Hand Free, 3-way Conference Call

•Phone Book: 100 records

•Call History: Answered Call, 20/ Unanswered Call, 20/ Outgoing Call, 20

•Ring Tone: 7-step volume control/ Single tone / Polyphonic Ring Tone (MIDI/SMAF)

•Receiver: 7-step volume control

•Language (Display Only) English

•Text Input: English, 0 ~ 9, *, #, *,+, -, /,@,%,$,&

Hardware & Physical Specificat

•Dimension: 17 (T) x44 (W) x106 (H) in mm

•LCD: 1.8“ TFT LCD, 128x160 pixel, 65k colors

•WLAN: IEEE 802.11b/g WLAN module

•Antenna: Embedded Antenna

•Charging: Mini-USB and cradle

•Battery: 900mAh, Li-Ion Rechargeable

•Ear phone jack: 2.5 mm standard 4-segment jack

•Weight: ~100 g

•Standby Time: 60 hours

•Talking Time: 120 minutes
